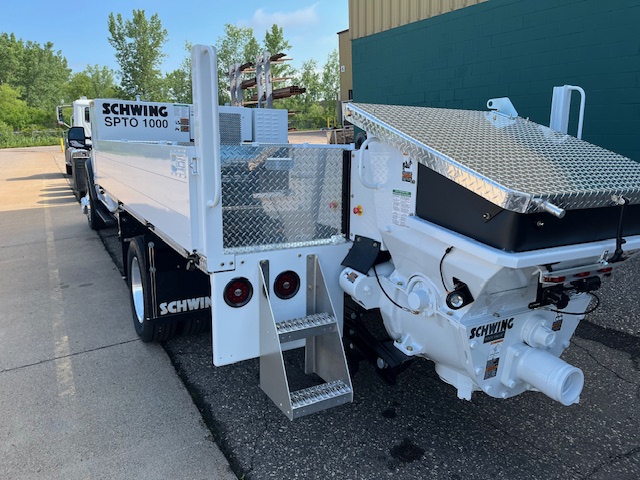

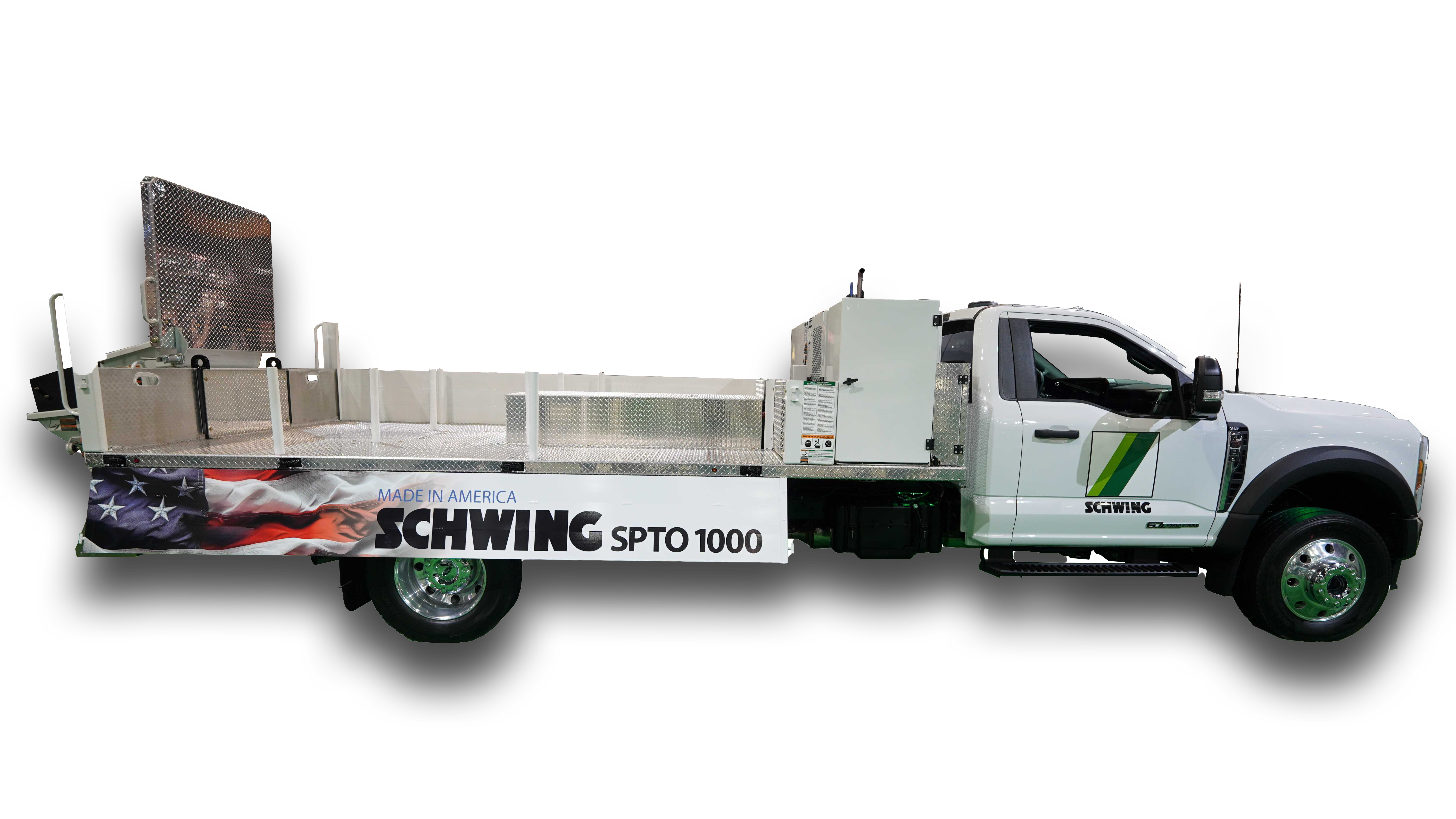

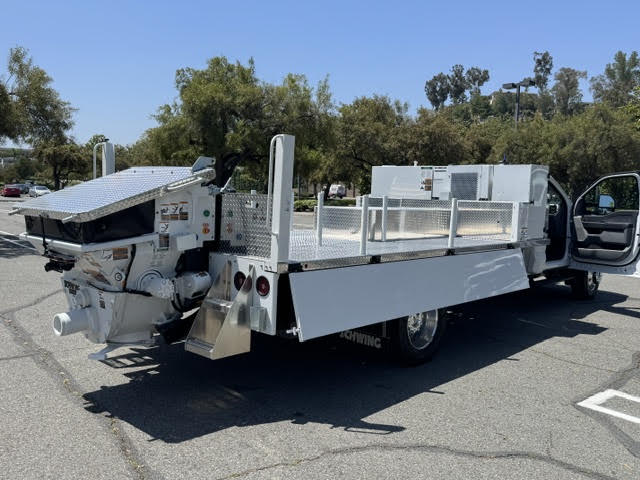

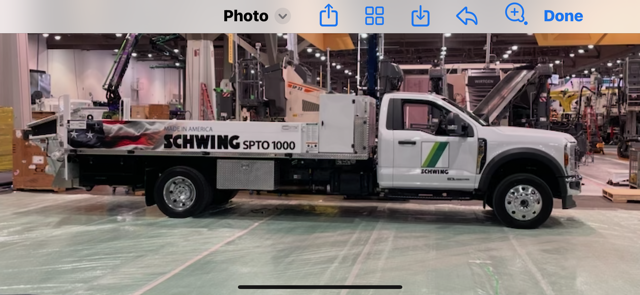

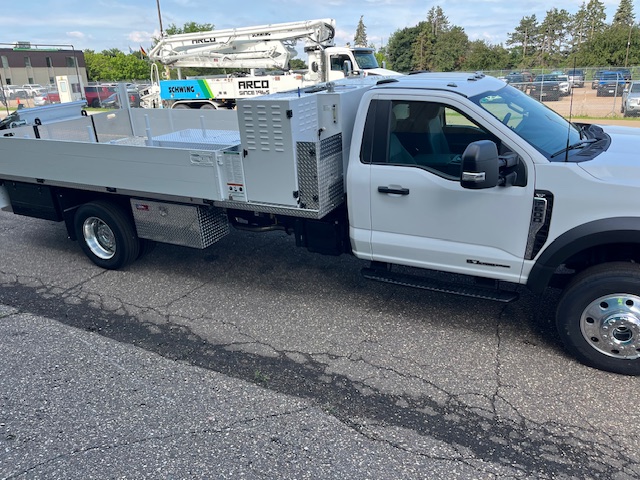

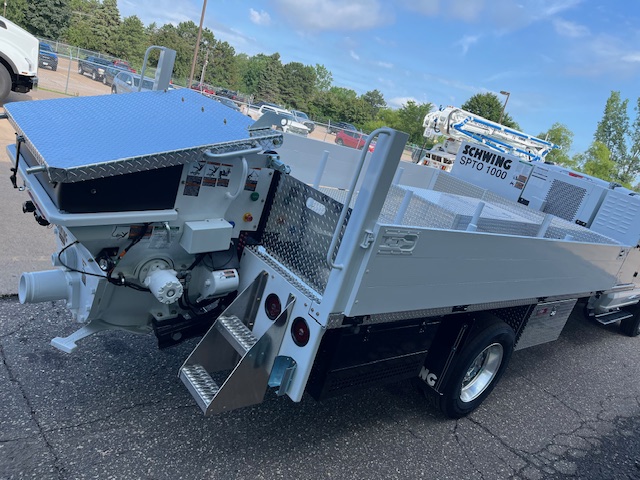

| The SCHWING SPTO 1000 on a Ford F600 4X4: job-site agility meets industrial power. Access any location with a compact truck that requires no CDL, and pour up to 70 cubic yards per hour with legendary SCHWING reliability. Power Beyond Pumping. Precision Beyond Expectation. |
| SPECIFICATIONS | U.S. | Metric |
| Concrete Output Per Hour | 70 cu yds | 54 cu m |
| Maximum Pressure on Concrete | 1100 psi | 76 bar |
| Maximum Aggregate Size | 1.5 in | 37 mm |
| Concrete Cylinder Diameter | 7 in | 180 mm |
| Concrete Cylinder Stroke Length | 39 in | 1000 mm |
| Differential Piston/Rod Diameter | 3.54/ 1.96 in | 90/ 50 mm |
| Outlet Diameter | 5 in | 125 mm |
| Concrete Valve Type | Long Rock™ |
| Shifting Cylinders | 2 |
| Max. Pump Strokes Per Minute | 35 |
| Volume Control | 0 to Maximum |
| Hydraulic System | Open Loop |
| Main Hydraulic Pump | A11VO130 |
| Hydraulic Pressure | 4350 psi | 300 bar |
| Hydraulic Tank Capacity | 70 gal | 265 l |
| Remote Control Cable | 100 ft | 30.5 m |
| Truck | Ford F600 4X4 |
| Truck GVWR | 22,000 lbs | 9979 kg |
| Truck Wet Weight | 17,440 lbs | 7911 kg |
| Truck Cargo Capacity | 4,560 lbs | 2069 kg |
| *Pump specifications are for standard units. Other units are available. Specifications are subject to change without prior notice |
